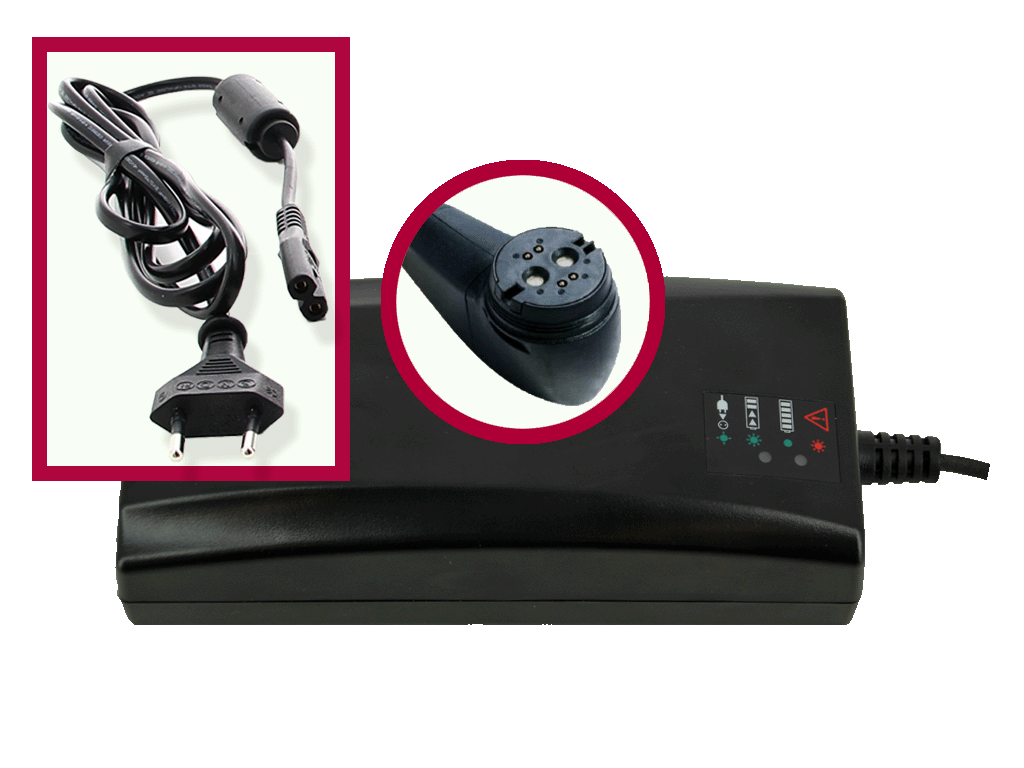

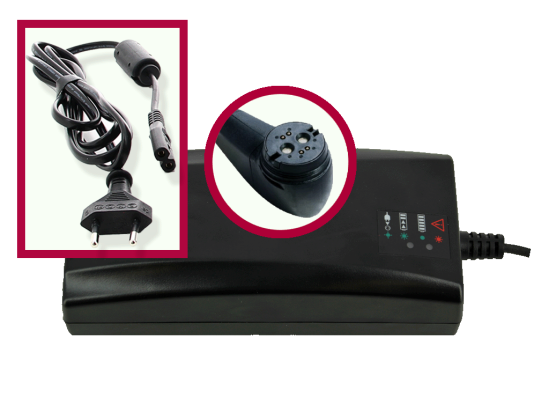

Derby Cycle charger for lithium-ion batteries with charging socket connector 90° Rosenberger. 42 volts voltage, 4 amp hours charging current.
Article No.: 32254
Derby item no.: 170817067
Name: Charger 42V 4A Plug Rosenberger
Label: Battery charger for 36V Li-Ion battery
Model: BSC42004000
Charge current: 4A
Nominal voltage: 36 V
Charge voltage: 42 V
Input: 230V ~ 50Hz 2.0A max
Output: 42.0/ 4A
Plug: Rosenberger 90°
Color: black
Displays:
1 x red LED
1 x green LED
Mode:
Standby: green flashing slowly
Battery charging: green flashing
Battery fully charged: green on
Severe fault: red flashing
Compatible with battery:
19381 / Alber Xion / Lin Bus / 15,50Ah
19382 / Alber Xion / Lin Bus / 11,00Ah
19383 / Alber Xion / Lin Bus / 15,50Ah
19384 / Alber Xion / Lin Bus / 11,00Ah
22804 / Alber Xion / Lin Bus / 11,25Ah
22938 / Alber Xion / Lin Bus / 14,50Ah
24558-1GP / Impulse 2 / CAN / 16,75Ah
24558-1GP / Integrale / CAN / 16,75Ah
24892 / Alber Xion / Lin Bus / 14,25Ah
25628-1GP / Impulse 3 / CAN / 14,25Ah
25629-1GP / Impulse 3 / CAN / 16,75Ah
25945 / Alber Xion / Lin Bus / 16,75Ah
27371-01 / Impulse 2 / CAN / 11,25Ah
27371-01 / Offroad / CAN / 11,25Ah
27372-01 / Impulse 2 / CAN / 13,00Ah
27372-01 / Offroad / CAN / 17,50Ah
30860-00 / Shimano Eco / Uart / 17,00Ah
30860-00 / Shimano Eco / Uart / 17,25Ah
30880-00 / Impulse 2 / CAN / 17,25Ah
30880-00 / Shimano Eco / CAN / 17,25Ah
31120-00 / Impulse 2 / CAN / 13,00Ah
31120-00 / Shimano Eco / CAN / 13,00Ah
31121-00 / Shimano Eco / Uart / 13,00Ah
31121-00 / Shimano Eco / Uart / 13,00Ah
31648-01 / Impulse 2 / CAN / 16,75Ah
31648-01 / Impulse 3 / CAN / 16,75Ah
31649-01 / Impulse 2 / CAN / 16,75Ah
31649-01 / Integrale / CAN / 16,75Ah
36170-01 / Impulse 2 / CAN / 17,25Ah
36170-01 / Shimano Eco / CAN / 17,25Ah
36171-01 / Shimano Eco / Uart / 17,00Ah
36171-01 / Shimano Eco / Uart / 17,25Ah
36173-01 / Integrale / CAN / 17,00Ah
Charging Contact Rosenberger 90°
