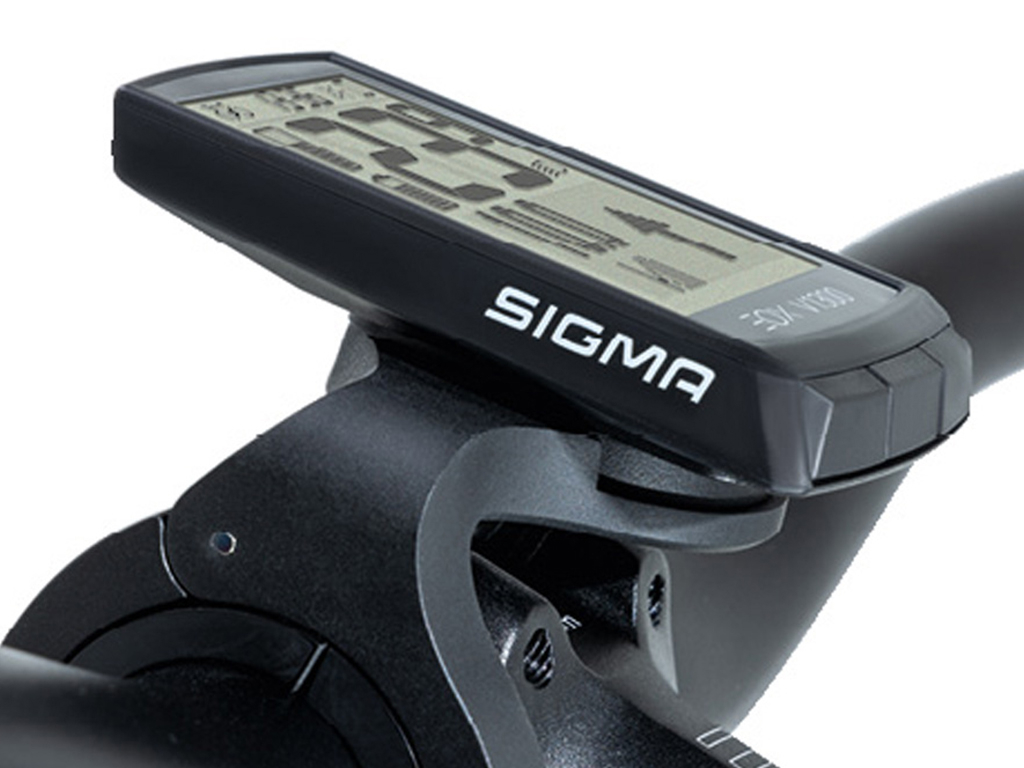

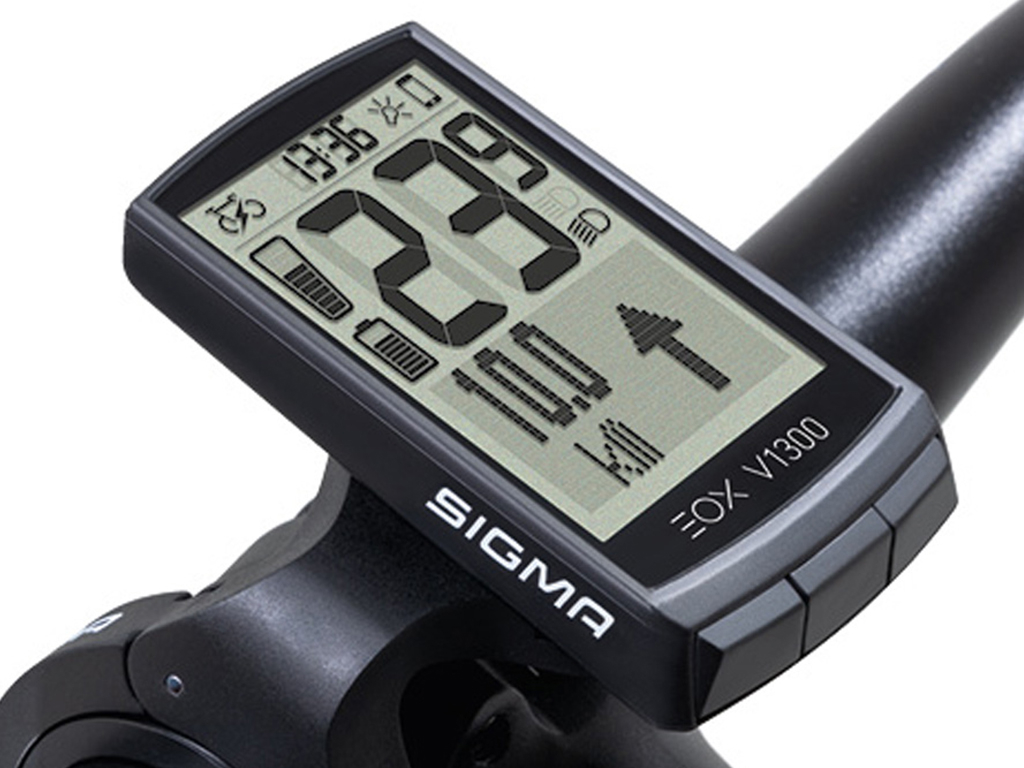

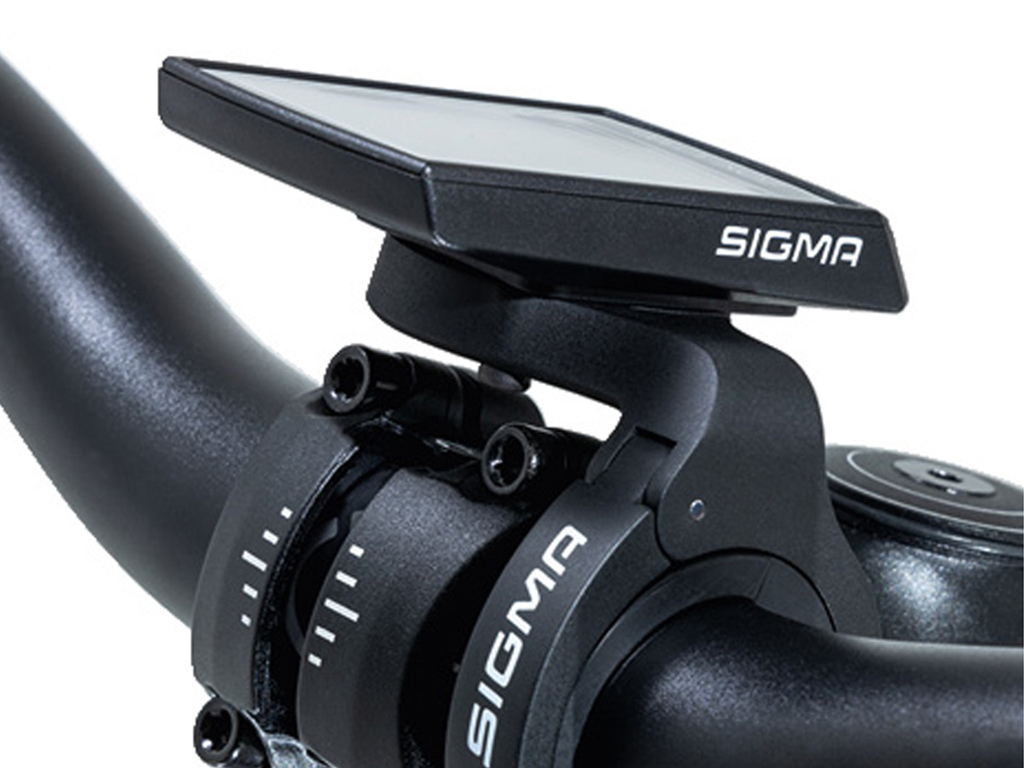

The wireless EOX® VIEW 1300 fits discreetly into the overall appearance of the e-bike with its flat design and ensures a tidy cockpit. It is equipped with a long-life battery. This allows it to be rotated out of the mount like a regular bike computer. Secure data connection is ensured by the high-performance ANT+ and Bluetooth interface. With 3 buttons on the bottom, the e-bike computer is easy to use. The transflective FSTN display ensures best readability even in direct sunlight. An integrated sensor automatically adjusts the display illumination to the ambient light.
Individualize, analyze, share
The EOX® App offers analysis options as well as the possibility of individualization. This is because the app can be used to specify which ride data is displayed on the EOX® VIEW products. To share rides anytime, anywhere, there are numerous interfaces to social media channels.
Installable only with the BMZ RS engine
Color (housing) anthracite
Material (housing) PC
Weight 62.7 g
Communication interfaces CAN, BLE
Usability only with EOX R500
Power supply by e-bike
Electrical data Operating voltage: 12V,
Operating power
Consumption: < 50 mA

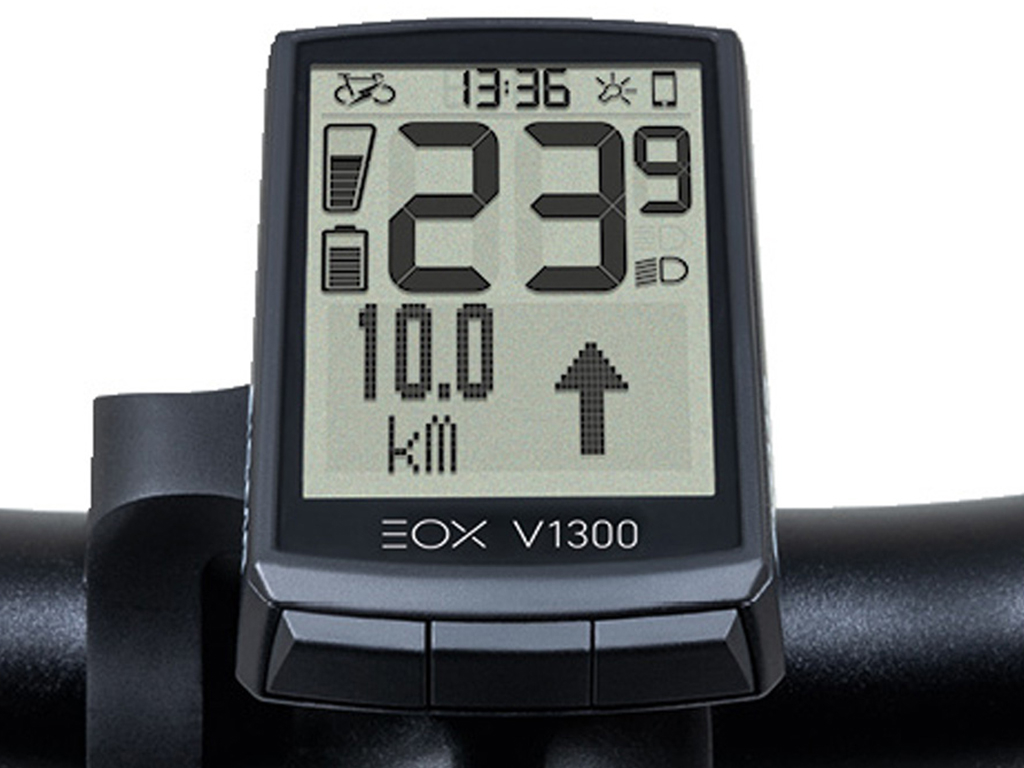

Display 2.38'' LCD display
(Segment/Matrix)
