2022 NOX E-bikes available immediately in the online store and in the warehouse outlet in 63791 Karlstein am Main

Nox Hybrid XC Tour Comp 2022 (Sachs RS 650Wh)

651 Wh battery power // 112 Nm torque // 120mm travel

€4,899.00 instead of €4,899.00
incl. 19 % VAT  and  plus shipping
Article-No.: 16043
in stock: delivery time 2-5 days

Notification when item is available again!

Our privacy policy applies.

The product does not exist in this color/size combination. Please choose another variant.

NOX HYBRID SERIES

NOX HYBRID bikes are characterized not only by attractive appearance, maximum robustness and extremely good handling, but also by a perfectly integrated drive system that meets the MTB requirements. With Brose Drive S or Sachs RS mid-engines, our bikes are equipped with power packs, where performance is writ large and no tour is too long and no climb is too steep.

All NOX HYBRID bikes are equipped with a fully integrated high-performance removable battery. The fully integrated battery has a compact design, can be removed downwards and provides the perfect basis for a wide range of use, ranging from long alpine tours to the after-work round on technical trails.

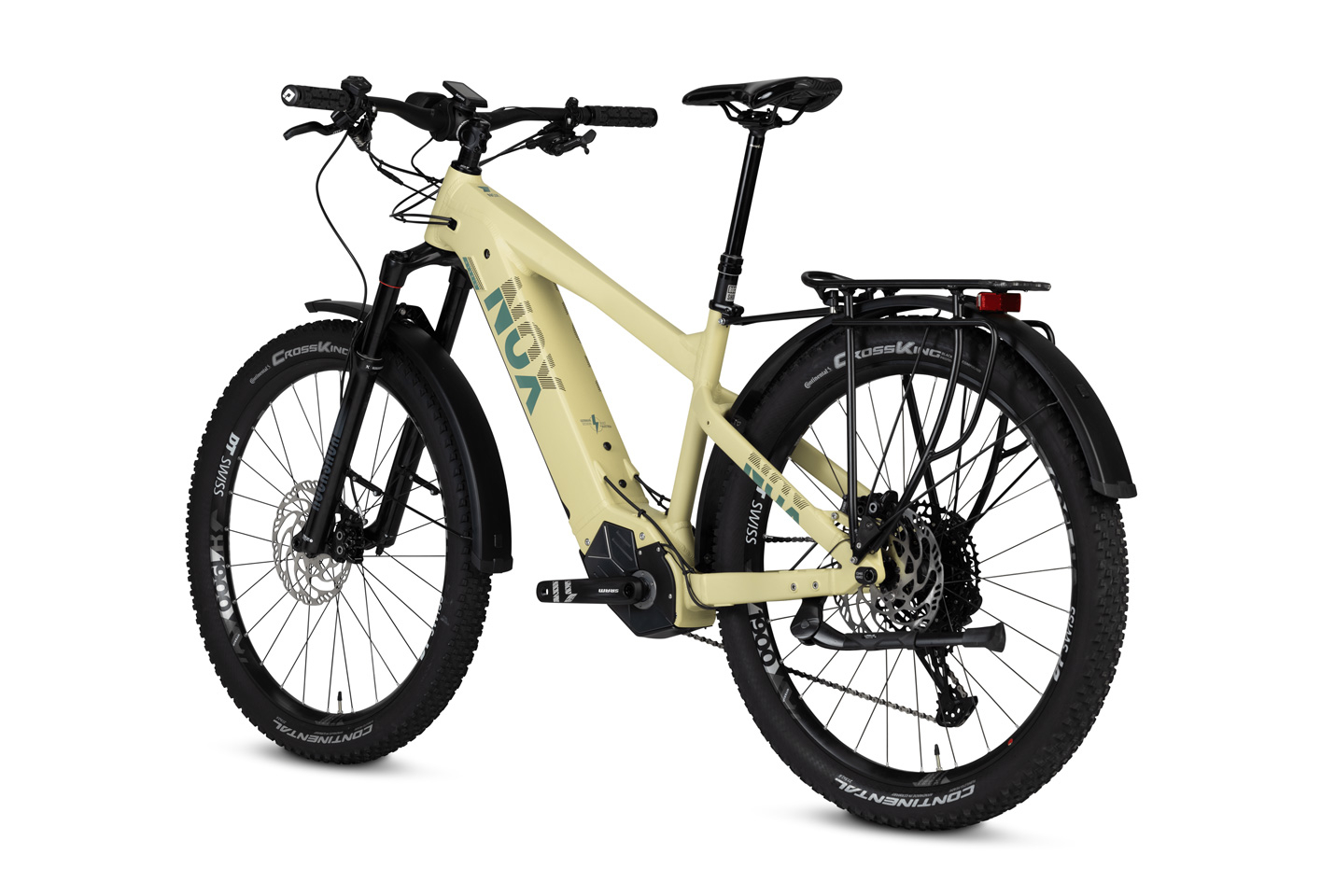

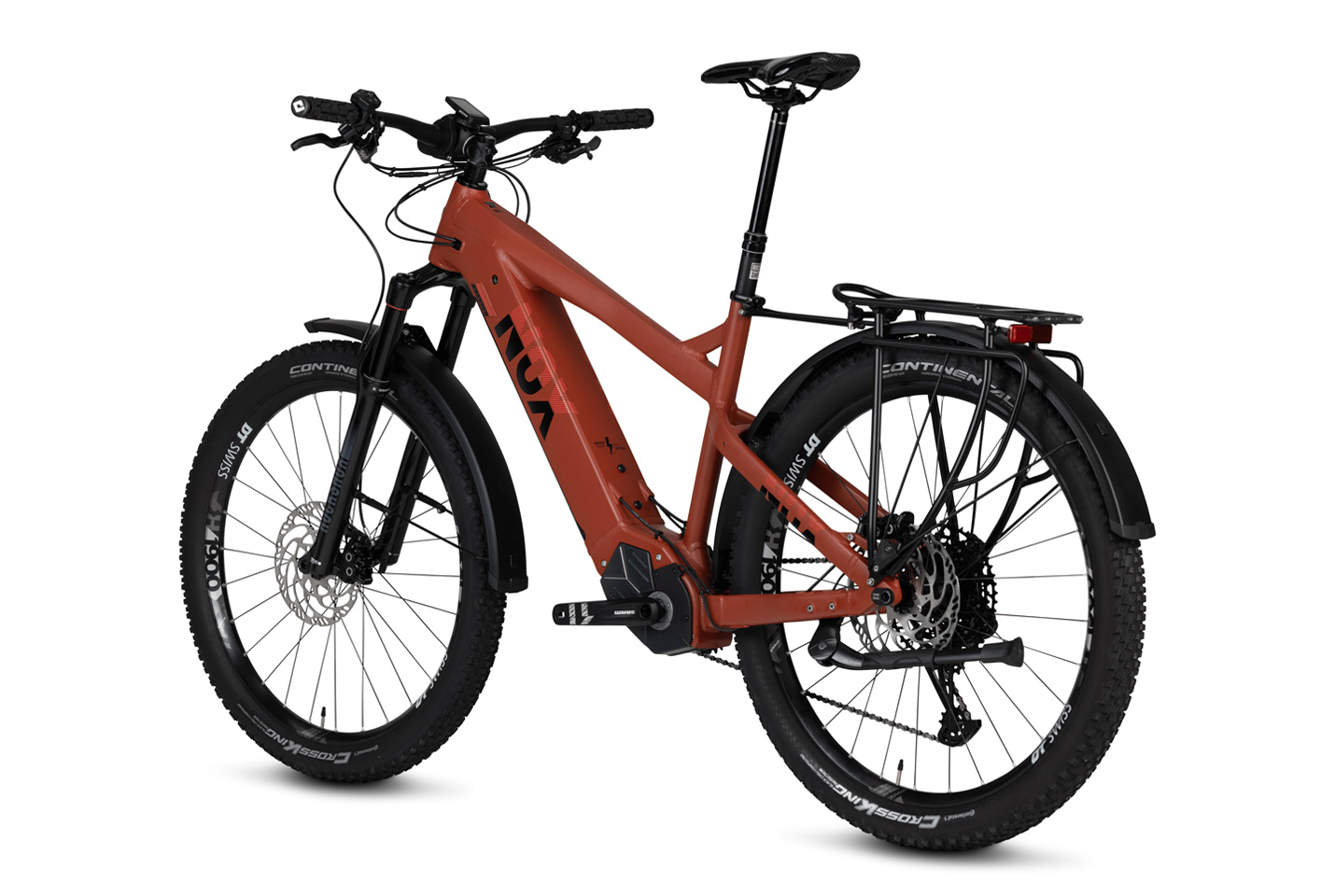

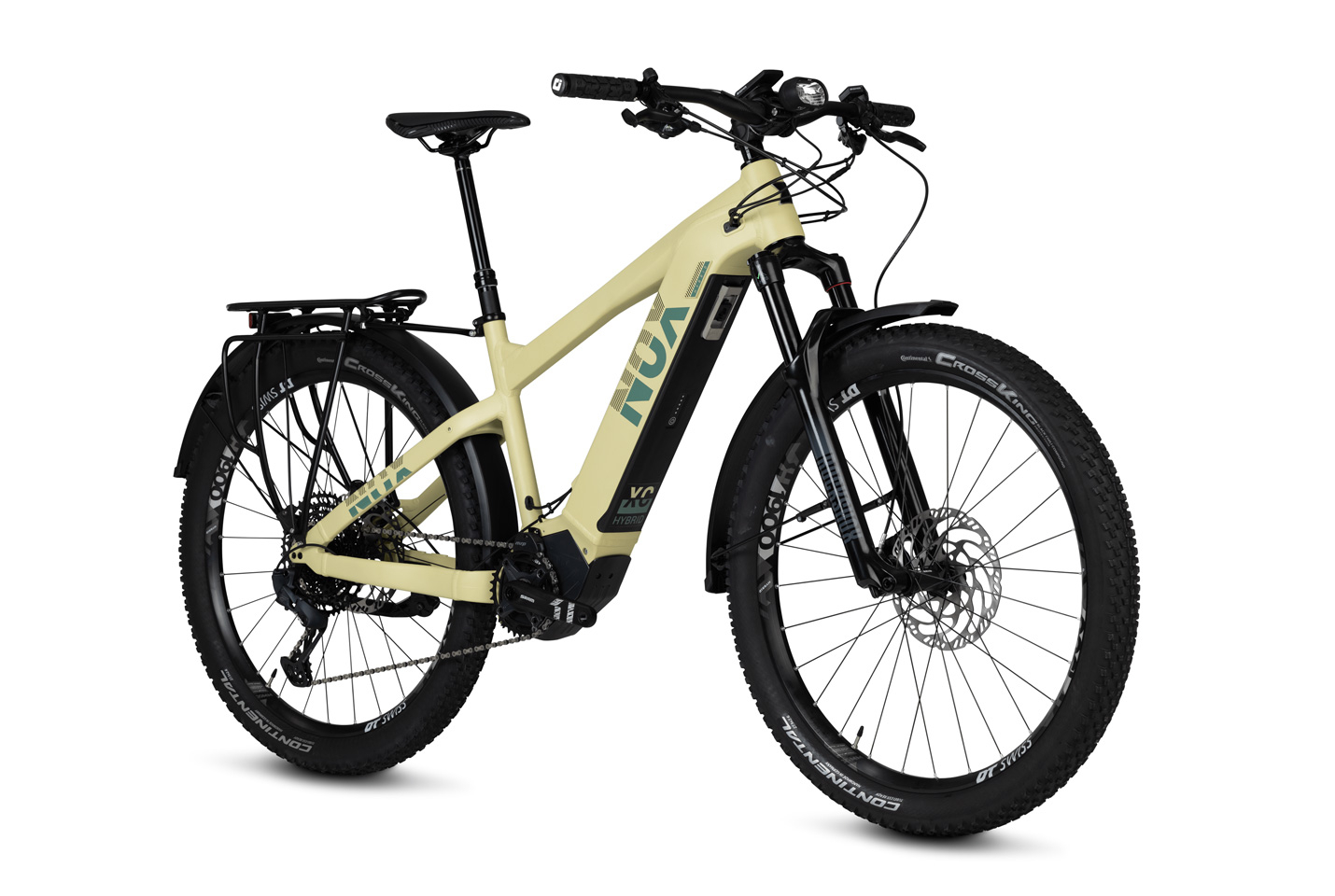

NOX HYBRID XC TOUR

You want a bike that is off-road capable, but also feels comfortable in the urban environment - and in extreme cases also does not shy away from any expedition? A robust, reliable bike with which you can commute to work during the week and take trips into nature on the weekend? A bike that takes your loads and is always a reliable partner?

If you answer these questions with YES, then we have with our NOX HYBRID XC TOUR the SUV among the e-bikes for you - a bike for all who want to make a good figure in the city and off-road.

ENGINE

The power package

The SACHS RS stands for high power of 112Nm even at a low cadence of 40-60 pedal rotations and a long range at the same time. The motor delivers this performance permanently, whether on the steep climb to the mountain hut or every day through the city with two children. Four different modes offer flexibility to control the assistance. Thanks to the appropriate software programming, the power delivery to the rider is controlled and harmonious.

AKKU

The resilient

The URV8 is a battery with a powerful mounting mechanism that functions reliably even in demanding load scenarios. The URV8's aluminium housing and mounting bracket are robust and durable. The fully integrated battery has a compact design and can be removed from the bottom. The battery is fitted with BMZ Top cells, which have a very high energy density and a service life of up to twelve years. The URV8 has a performance peak of 30A, 630Wh and is available with 36V nominal voltage. This makes the URV8 the high-performance solution and ready for the new generation of motors in e-bikes. In combination with the SACHS motors, the URV8 has a performance peak of 651Wh and is available with a nominal voltage of 48V.

OPERATING UNIT / DISPLAY

Sigma EOX Remote

With ergonomic design, ambient light sensor and Bluetooth Smart integration, the SIGMA EOX REMOTE is a smart control centre. The LED indicator makes all e-bike information visible even without a display.
Available for:
HYBRID ENDURO 7.1 / SACHS
HYBRID ALL-MTN 5.9 / SACHS
HYBRID XC TRAIL / SACHS



CONNECTIVITY

BROSE

Every NOX bike with BROSE drive can be connected to the smartphone via Bluetooth. The additional computing power of the smartphone enables new features for the e-bike. The smartphone of the e-biker serves as an on-board computer and provides information about the battery and the motor.

With ergonomic design, ambient light sensor and Bluetooth Smart integration, the SIGMA EOX REMOTE is a smart control centre. The LED indicator makes all e-bike information visible even without a screen.
Available for:
HYBRID ENDURO 7.1 / SACHS
HYBRID ALL-MTN 5.9 / SACHS
HYBRID XC TRAIL / SACHS

SACHS

The same applies to all NOX bikes with SACHS engines that are configured with Sigma displays. With the SIGMA EOX APP you get full access to all relevant information. Combined with accurate GPS tracking, riders have the ability to precisely analyse their route performance, track their training progress and learn even more about their bikes. To share rides anytime and anywhere, there are numerous interfaces to social media channels.

FEATURE-HIGHLIGHTS

Not every tour is the same. That's why it often makes sense to adjust the engine power and assistance levels to the terrain profile and personal riding style.

NAVIGATION

In addition to classic navigation, the navigation module also includes the option to record routes ridden or to be offered several route variants. CONNECTIVITY BROSE Every NOX bike with a BROSE drive can be connected to a smartphone via Bluetooth. The additional computing power of the smartphone enables new features for the e-bike. The smartphone of the e-biker serves as an on-board computer and provides information about the battery and the motor. SACHS The same applies to all NOX bikes with SACHS engines that are configured with Sigma displays. With the SIGMA EOX APP you get complete transparency of all relevant information. Combined with accurate GPS tracking, riders have the ability to precisely analyse their route performance, track their training progress and learn even more about their bikes. To share rides anytime and anywhere, there are numerous interfaces to social media channels.

BATTERYMANAGEMENT

In addition, the system accurately displays the remaining range, taking into account the battery's state of charge and the selected assistance level.

All images are symbolic and may differ from the product.

Determine the optimal frame size for your mountain bike

  1. Measure your inseam
    To determine your frame size, first measure your inseam (length from the ground to your buttocks).
    You will need a book and a folding rule. Put the book between your legs and pull it all the way up. Keep it as horizontal as possible. Now measure from the floor to the top edge of the book. Write down or remember the measurement.

  2. Calculate your frame size:
    Enter your stride length here and click on Calculate:


Alternatively, you can also calculate your frame size based on your height:

However, the result is less accurate.

Body size 155 - 168 cm: Size S

Body height 169 - 178 cm: size M

Body height from 179 - 188 cm: size L

Body size 189 - 200 cm: size XL



The size recommendations listed here are only guidelines! The correct bike size depends not only on your height but also on your stride length and the desired riding characteristics and areas of use of the bike. For further information, please contact: shop@bmz-group.com

With purchase of the e-bike we always deliver with:

  • original matching charger 220V (normal socket)
  • User manual
  • Service booklet

Pedals are NOT included in delivery.

.

Category E-Mountainbike

Frame NOX Frame HT 2.2

Frame type Diamond

Fork RS 35 Silver TK

Fork travel (mm) 120

Circuit SRAM NX Eagle 12fach

Gearshift SRAM NX Eagle 12x

Number of gears 12

Brakes Magura MT4

Brake discs 203V/180H MDRC

Wheelset DT SWISS H1900

Tires Continental Cross King 27,5x2,6" Shield wall

Tire size 27.5“/584mm (650B)

Handlebar Reverse E-Element Ergo 740

Stem Reverse E-XC

Handles ODI

Saddle Prologo

Seatpost Race Face Ride 30,9

Crank set SRAM X1

Gear rim SRAM PG-1230, 11-50T

Front light Supernova Mini 2 - LDM

Mudguards SKS "Bluemels U75" PET A 75 R 28"

Stand URSUS King XL

Motor Sachs RS

Battery Sachs SI 651.01 48V

Battery capacity 650

Display Sigma Eox Remote + Mitteldisplay EOX View 1300

Target group Ladies, Men

Application area Road, Cross

Purpose of use Tour, Sport
