NOX HYBRID SERIES
NOX HYBRID bikes are characterized not only by an appealing look, maximum robustness and extremely good handling, but above all by a perfectly integrated drive system that meets MTB requirements. With Brose Drive S or BMZ RS mid-drive motors, our bikes are equipped with power packs where performance is paramount and no tour is too long and no climb too steep.
All NOX HYBRID bikes are equipped with a fully integrated high-performance removable battery. The fully integrated battery has a compact design, can be removed at the bottom and provides the perfect basis for a wide range of uses, from long alpine tours to after-work laps on technical trails.
MOTOR
BMZ RS
With 112 Newton meters, the BMZ RS sets new standards in terms of performance. Thanks to the special design, optimum performance is available for every use and every skill level. Only a few e-bikers achieve consistently high cadences, which is why the BMZ RS delivers high torque at just 40-60 pedal revolutions per minute. This is particularly beneficial for inexperienced off-road riders or cargo bikes when "stop-and-go" in the city. The BMZ RS forgives "riding mistakes" and supports the rider on technical trails. Sporty riders benefit from significantly higher speeds during training and can maintain them for much longer. The new motor management enables a significantly greater range even in the most powerful mode and a pleasantly controlled power delivery that reaches the pedals harmoniously. Always ride with power and look forward to every challenge: BMZ RS.
AKKU
BMZ UR-V8
The BMZ UR-V8 is a powerful lithium-ion bike battery developed for Brose mid-drive motors. This down tube battery offers an impressive capacity of 16 Ah (576 watt hours) at a voltage of 36 V. With its elegant silver design, it blends seamlessly into your e-bike. Enjoy longer rides and reliable power for your e-bike with this high-quality battery from BMZ, a global leader in lithium-ion battery system solutions. If you have any questions, please do not hesitate to contact us.
DISPLAY

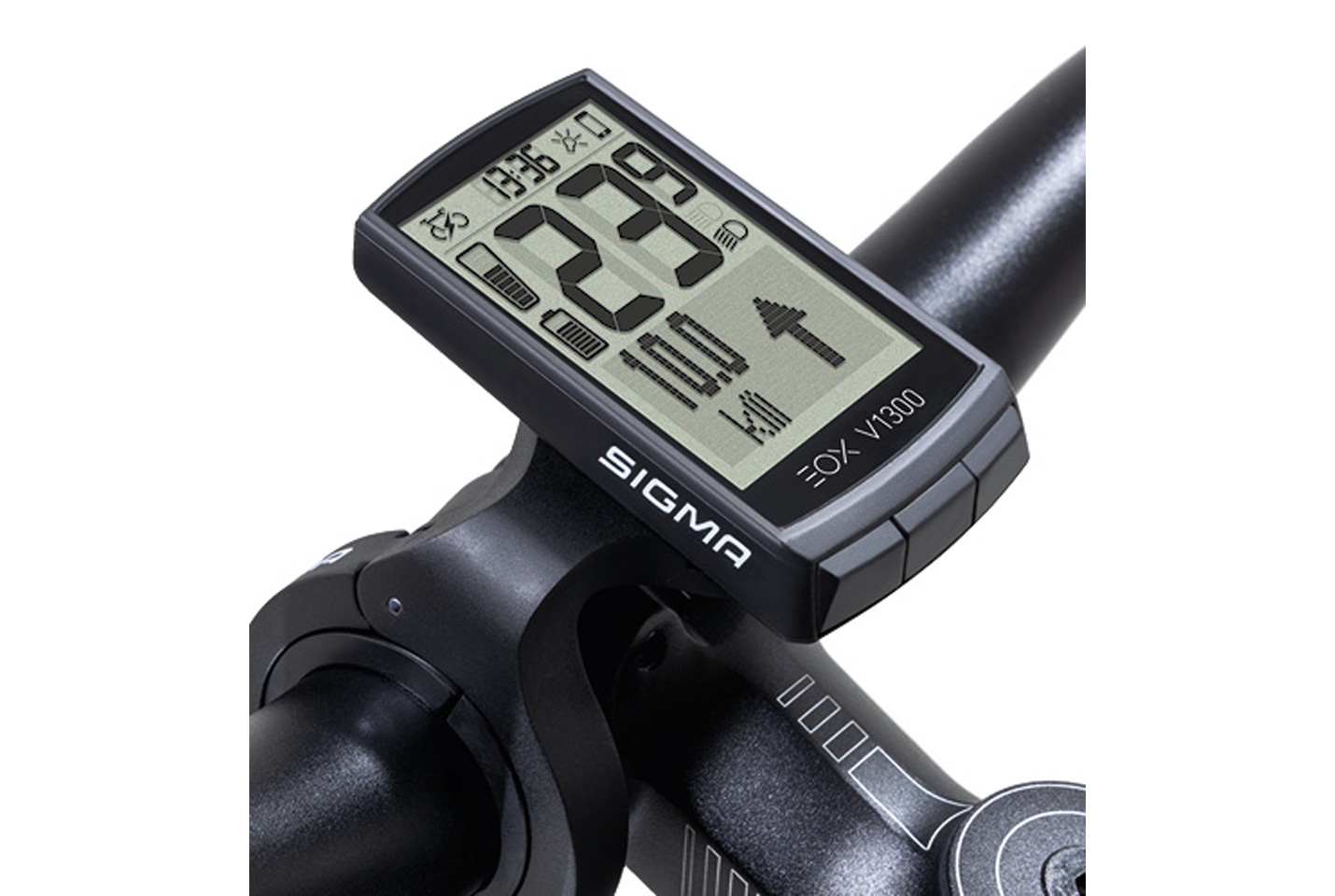

SIGMA EOX View 1300
With its flat design, the wireless EOX® VIEW 1300 blends discreetly into the overall appearance of the e-bike and ensures a tidy cockpit. It is equipped with a long-life battery and can be rotated out of the holder like a regular bike computer. The secure data connection is guaranteed by the high-performance ANT+ and Bluetooth interface. With 3 buttons on the underside, the e-bike computer is easy to operate. The transflective FSTN display ensures optimum readability even in direct sunlight. An integrated sensor automatically adjusts the display lighting to the ambient light.
Determine the optimal frame size for your mountain bike
- Measure your stride length
To determine your frame size Measure as 1. your stride length (length from the ground to the buttocks).
For this you need a book and a folding rule. The book you clamp between your legs and pull it all the way up. Hold it as horizontally as possible. Now you measure from the floor to the top edge of the book.
You should write down or remember the measured value.
- Calculate your frame size:
Enter your stride length here and click Calculate:
Alternatively, you can also determine your frame size based on your height:
The result, however, is less accurate.
Body size from 155 - 168 cm: size S
Body size from 169 - 178 cm: size M
Body size from 179 - 188 cm: size L
Body size from 189 - 200 cm: size XL
The size recommendations listed here are only guidelines! The correct bike size depends in addition to the body size of the stride length and the desired driving characteristics and areas of use of the bike. For more information, please contact: shop@bmz-group.com
With purchase of the e-bike we always deliver with:
- original matching charger 220V (normal socket)
- User manual
- Service booklet
Pedals are NOT included in delivery.
.Category E-Mountainbike
Frame NOX Frame HT 2.2
Frame type Diamond
Fork FOX Performance E-Bike 34
Fork travel (mm) 120
Circuit SRAM X0 Eagle 12fach
Gearshift SRAM X0 Eagle 12x
Number of gears 12
Brakes Magura MT5 HC
Brake discs 203V/180H MDRC
Wheelset DT SWISS HX1501
Tires Continental Cross King 29x2,6" ProTection Apex
Tire size 29"/622mm
Handlebar Reverse E-Element Ergo 740
Stem Reverse E-XC
Handles ODI
Saddle Prologo
Seatpost Rock Shox Reverb Stealth 30,9
Crank set SRAM X1
Gear rim SRAM XG 1275 11-50T
Battery BMZ UR-V8 650W 48V
Battery capacity 650
Display Sigma Eox Remote
Target group Ladies, Men
Application area Cross, Mountain
Purpose of use Tour, Sport
